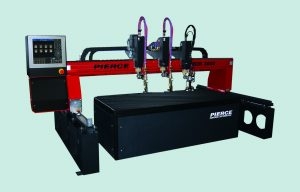

RUR Series Thermal Cutting machine

от 0.00 €

With respect to its structural and dynamic properties the RUR CNC cutting machine is suitable not only for oxy fuel and conventional plasma cutting but also for High Definition plasma cutting. The RUR is characterized by a substantial fully welded machine frame using a digitally synchronized twin side motion control system fitted to both longitudinal rails of the machine. The machine also incorporates a high level of dynamic automation.

Basic equipment

fully welded beam without bolted joints
linear bearing in cross axis
NEW AC servo-drive system (12 000 mm/min.)
digital synchronisation in longitudinal axis
NEW PIERCE 15“ control system with touch screen
floating cutting heads
electric ignition
capacitive height control of oxy torch
automatic piercing with HI-LOW preheating
automatic initial height sensing of plasma torch
arc voltage height control of plasma torch
parking for 1 head out of cutting area
limit switch protection in each axis

Optional equipment

NEW PIERCE 19“ control system with touch screen
plasma system by customer request
linear bearing in longitudinal axis
NEW AC servo-drive system (20 000 mm/min.)
automatic gas console
torch selection from control panel
anti-collision system
pneumatic, plasma or ink jet marker
air cooling of portal frame
control system heating (for winter operation)
parking space for 3 torches

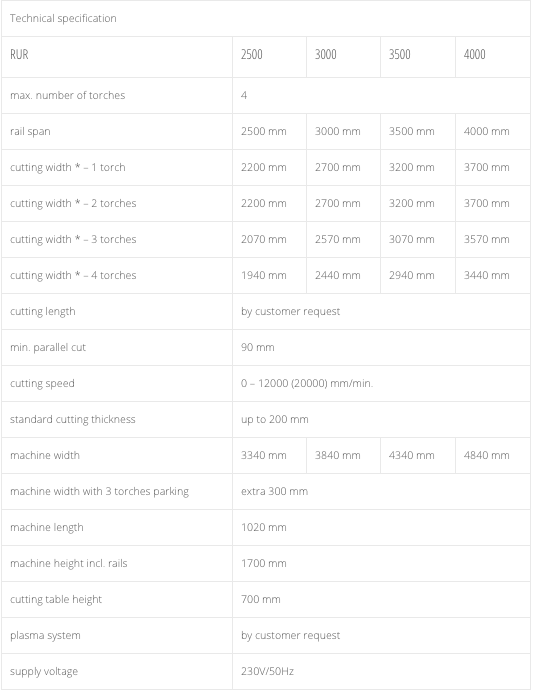

* Technical data is valid for the application of oxy-fuel torches. For data of alternative machine configurations, please, contact us.
